Problème sujet RDM


crysis
 Share

Recommended Posts

Bonjour tout le monde

SVP, j'ai besoin de votre aide pour la resolution d'un exercice en RDM

voilà l'énoncé de l'exercice:

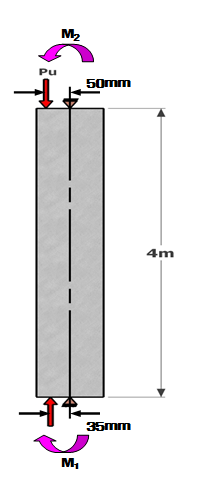

Déterminer le moment grossie, Charge excentre de 50 mm en haut and 35 mm en bas.

Pu = 800 kN

PDead = 400 kN

PLive = 200 kN

M1 = 30 kN·m

M2 = 50 kN·m

M1/M2 = 0.60

f'c = 25 MPa

Poteaux de dimensions = 40cm × 40cm

 Poteau biarticulé.

Merci beaucoup pour votre aide


Edited by crysis
