la conception d une ville


aminesammaa
 Share

Recommended Posts

bonjour tt le monde

je suis en stage j ai une villa R+1 je veux faire la conception et le plan de coffrage

j ai rencontrer un probleme au niveau de l amplacement des poteaux au niveau du 1 ere etage

voilla le plan dwg

et merci

Villa Riad Toulal 2 lot 581 (autorisation).dwg

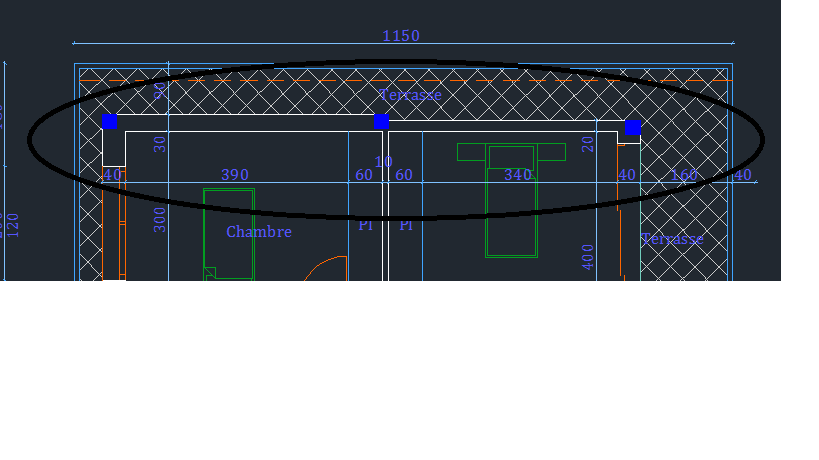

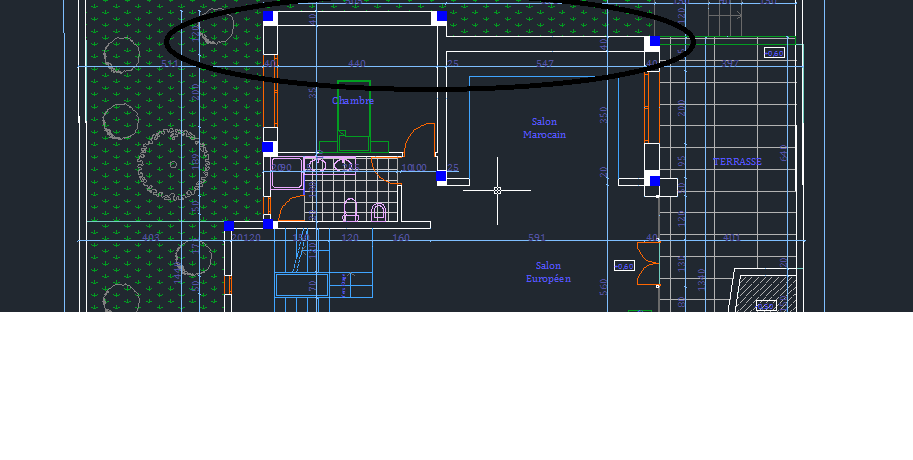

voila le probleme
